產品展示

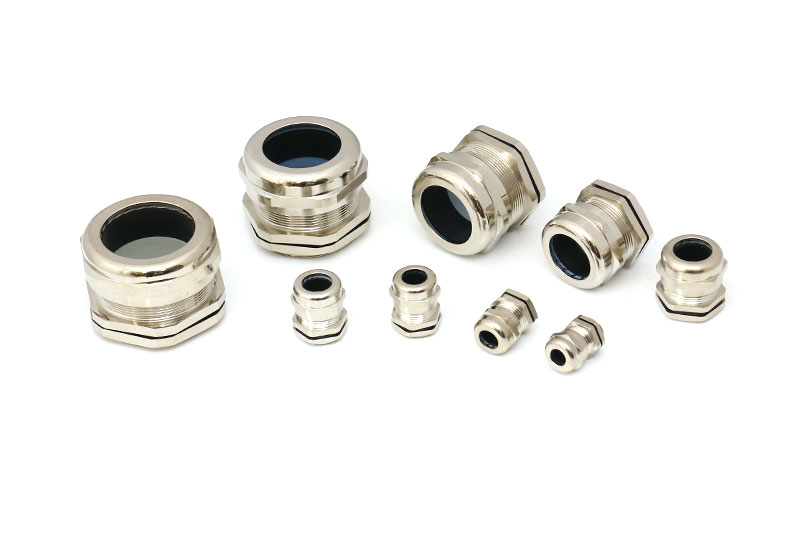

M制環保PG7-PG63防水電纜接頭CE認證金屬防爆格蘭頭

分類：防爆格蘭頭
型號：HSM
品牌：ATR
產地：寧波市奉化區
廠家：奉化市安泰爾電器有限公司

產品詳情

產品概述

材 料：外部金屬為黃銅鍍鎳;內部芯套為尼龍PA66;密封件為丁腈橡膠

防護等級：在規定的卡口范圍內，使用合適的O型密封圈，防護等級可達到IP68

溫度范圍：靜態：-40℃到+100℃，短時間可以達到+120℃

動態：-20℃到+80℃，短時間可以達到+100℃

注：可根據客戶需求定制通過ROHS認證的接頭產品


結構圖


技術參數

HSM-G G制螺紋

規格型號螺紋規格卡口范圍螺紋外徑螺紋長度扳手尺寸包裝單位
HSM-G3/8G3/8"4～816.66282050
HSM-G1/2-XG1/2"5～1020.99582450
HSM-G1/2G1/2"6～1220.99582450
HSM-G1/2-DG1/2"8～1420.99582450
HSM-G3/4-XG3/4"6～1226.44183050
HSM-G3/4G3/4"8～1426.44183050
HSM-G3/4-DG3/4"13～1826.44183025
HSM-G1G1"18～2533.24994020
HSM-G1-1/4G1-1/4"22～3241.910 105010
HSM-G1-1/2G1-1/2"30～3847.803105510
HSM-G2G2"37～4459.61411655


HSM-N NPT制錐管螺紋

規格型號螺紋規格卡口范圍螺紋外徑螺紋長度扳手尺寸包裝單位
HSM-N3/8NPT3/8"4～817.055112050
HSM-N1/2-XNPT1/2"5～1021.223132450
HSM-N1/2NPT1/2"6～1221.223132450
HSM-N1/2-DNPT1/2"8～1421.223132450
HSM-N3/4-XNPT3/4"6～1226.568133050
HSM-N3/4NPT3/4"8～1426.568133050
HSM-N3/4-DNPT3/4"13～1826.568133025
HSM-N1NPT1"18～2533.227194020
HSM-N1-1/4NPT1-1/4"22～3241.984165010
HSM-N1-1/2NPT1-1/2"30～3848.053185510
HSM-N2NPT2"37～4460.09118655


HSM-M 公制螺紋

規格型號螺紋規格卡口范圍螺紋外徑螺紋長度扳手尺寸包裝單位
HSM-M12M12*1.53～6.51251450
HSM-M16M16*1.54～81671850
HSM-M16-DM16*1.55～101672050
HSM-M18M18*1.55～101872050
HSM-M20-XM20*1.54～82072250
HSM-M20M20*1.56～122072250
HSM-M20-DM20*1.58～142072450
HSM-M22M22*1.58～142272450
HSM-M24-XM24*1.57～122472750
HSM-M24M24*1.58～142472750
HSM-M25-XM25*1.58～142572825
HSM-M25M25*1.510～162572825
HSM-M25-DM25*1.513～182573025
HSM-M27-XM27*2.011～162783025
HSM-M27M27*2.013～182783025
HSM-M30-XM30*2.011～163083425
HSM-M30M30*2.013～183083425
HSM-M32-XM32*1.513～183283612
HSM-M32M32*1.515～223283612
HSM-M32-DM32*1.519～253284012
HSM-M33M33*2.018～253384012
HSM-M36-XM36*2.015～22368409
HSM-M36M36*2.018～25368409
HSM-M40-XM40*1.518～25409455
HSM-M40M40*1.521～28409455
HSM-M40-DM40*1.522～32409505
HSM-M42M42*2.022～32429501
HSM-M48M48*2.022～32489551
HSM-M50M50*1.532～38509551
HSM-M56M56*2.032～38569601
HSM-M60M60*2.037～446010651
HSM-M63-XM63*1.537～446310701
HSM-M63M63*1.542～536310751


HSM-M-L 加長型公制螺紋

規格型號螺紋規格卡口范圍螺紋外徑螺紋長度扳手尺寸包裝單位
HSM-M12-LM12*1.53～6.512101450
HSM-M16-LM16*1.54～816101850
HSM-M16-DLM16*1.55～1016102050
HSM-M18-LM18*1.55～1018102050
HSM-M20-XLM20*1.54～820102250
HSM-M20-LM20*1.56～1220102250
HSM-M20-DLM20*1.58～1420102450
HSM-M22-LM22*1.58～1422102450
HSM-M24-XLM24*1.57～1224122750
HSM-M24-LM24*1.58～1424122750
HSM-M25-XLM25*1.58～1425122825
HSM-M25-LM25*1.510～1625122825
HSM-M25-DLM25*1.513～1825123025
HSM-M27-XLM27*2.011～1627123025
HSM-M27-LM27*2.013～1827123025
HSM-M30-XLM30*2.011～1630123425
HSM-M30-LM30*2.013～1830123425
HSM-M32-XLM32*1.513～1832123612
HSM-M32-LM32*1.515～2232123612
HSM-M32-DLM32*1.519～2532124012
HSM-M33-LM33*2.018～2533124012
HSM-M36-XLM36*2.015～223612409
HSM-M36-LM36*2.018～253612409
HSM-M40-XLM40*1.518～254015455
HSM-M40-LM40*1.521～284015455
HSM-M40-DLM40*1.522～324015505
HSM-M42-LM42*2.022～324215501
HSM-M48-LM48*2.022～324815551
HSM-M50-LM50*1.532～385015551
HSM-M56-LM56*2.032～385615601
HSM-M60-LM60*2.037～446015651
HSM-M63-XLM63*1.537～446315701
HSM-M63-LM63*1.542～536315751


HSM-P PG制螺紋

規格型號螺紋規格卡口范圍螺紋外徑螺紋長度扳手尺寸包裝單位
HSM-PG7PG73～6.512.551450
HSM-PG9PG94～815.271750
HSM-PG11PG115～1018.672050
HSM-PG13.5-X PG13.54～820.472250
HSM-PG13.5PG13.56～1220.472250
HSM-PG16-XPG167～1222.572450
HSM-PG16PG168～1422.572450
HSM-PG21-XPG2111～1628.383025
HSM-PG21PG2113～1828.383025
HSM-PG29-XPG2915～223784012
HSM-PG29PG2918～253784012
HSM-PG36PG3622～32479505
HSM-PG42PG4232～38549601
HSM-PG48PG4837～4459.310651


HSM-P-L 加長型PG制螺紋

規格型號螺紋規格卡口范圍螺紋外徑螺紋長度扳手尺寸包裝單位
HSM-PG7-LPG73～6.512.5101450
HSM-PG9-LPG94～815.2101750
HSM-PG11-LPG115～1018.6102050
HSM-PG13.5-XLPG13.54～820.4102250
HSM-PG13.5PG13.56～1220.4102250
HSM-PG16-XLPG167～1222.5102450
HSM-PG16-LPG168～1422.5102450
HSM-PG21-XLPG2111～1628.3123025
HSM-PG21-LPG2113～1828.3123025
HSM-PG29-XLPG2915～2237124012
HSM-PG29-LPG2918～2537124012
HSM-PG36-LPG3622～324715505
HSM-PG42-LPG4232～385415601
HSM-PG48-LPG4837～4459.315651
